- General Information
- Manufacturer
- ASRock, Inc
- Manufacturer Website Address
- http://www.asrock.com
- Brand Name
- ASRock
- Product Type
- Desktop Motherboard

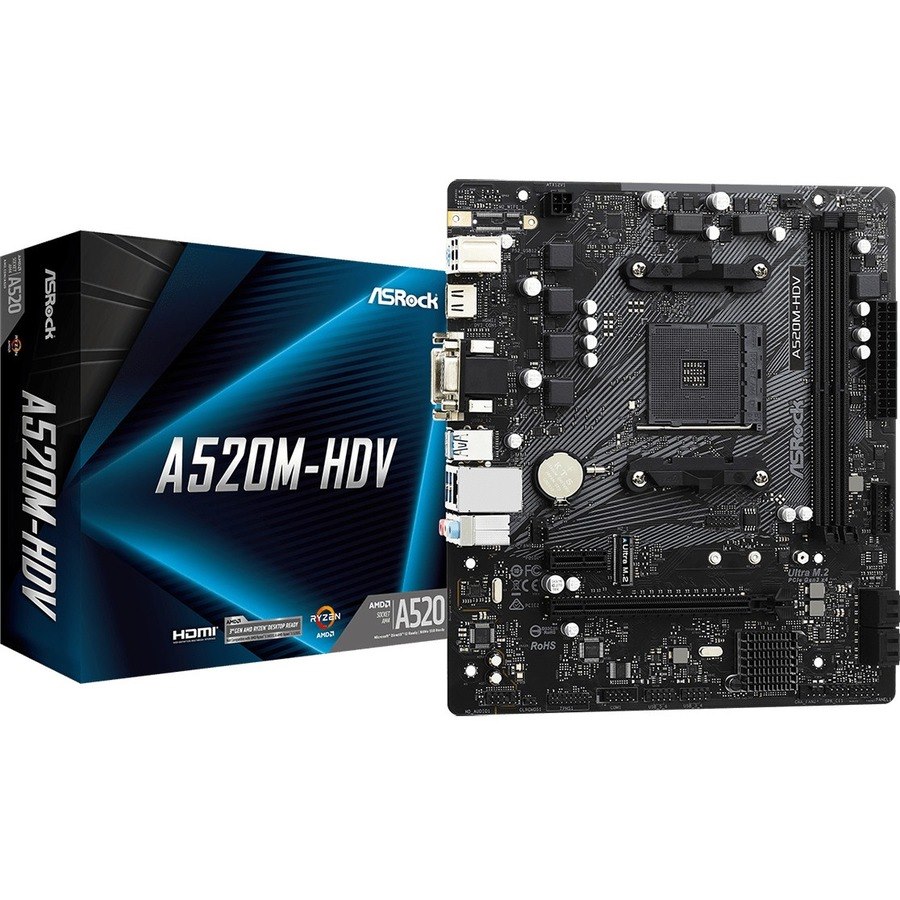

A520 MOTHERBOARD FOR EVERYONE
All Essentials You Need For Computing
Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.
Premium 50A Power Choke
Compared to traditional chokes, ASRock's premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
- Processor & Chipset
- Chipset Manufacturer
- AMD
- Chipset Model
- A520
- Total Processor Supported
- 1
- Processor Socket
- Socket AM4
- Processor Supported
- Ryzen 3
- Ryzen 5
- Ryzen 7
- Ryzen 9
- Ryzen 3 PRO
- Ryzen 5 Pro
- Ryzen 7 PRO
- Memory
- Number of Memory Slots
- 2
- Memory Form Factor
- DIMM
- UDIMM
- Maximum Memory Supported
- 64 GB
- Memory Technology
- DDR4 SDRAM
- Memory Speed Supported
- 4733 MHz
- 4666 MHz
- 4600 MHz
- 4533 MHz
- 4466 MHz
- 4400 MHz
- 4333 MHz
- 4266 MHz
- 4200 MHz
- 4133 MHz
- 4000 MHz
- 3866 MHz
- 3800 MHz
- 3733 MHz
- 3600 MHz
- 3466 MHz
- 3200 MHz
- 2933 MHz
- 2667 MHz
- 2400 MHz
- 2133 MHz
- I/O Controller
- Controller Type
- Serial ATA/600
- RAID Supported
- Yes
- RAID Levels
- 0
- 1
- 10
- Video
- Onboard Video
- CPU Dependent Video
- Audio
- Audio Channels
- 7.1
- Network & Communication
- Gigabit Ethernet
- Yes
- I/O Expansions
- Total Number of Expansion Slots
- 2.0
- Total Number of PCI Express Slots
- 2
- Number of PCI Express x1 Slots
- 1
- Number of PCI Express x16 Slots
- 1
- Interfaces/Ports
- Total Number of USB Ports
- 6
- Number of USB 2.0 Ports
- 2
- Number of USB 3.2 Ports
- 4
- VGA
- Yes
- HDMI
- Yes
- DVI
- Yes
- Number of Network (RJ-45) Ports
- 1
- Onboard Interfaces
- Number of SATA Interfaces
- 4
- Number of M.2 Interfaces
- 1
- Total Number of Onboard USB Ports
- 6
- Number of Onboard USB 2.0 Ports
- 4
- Number of Onboard USB 3.2 Ports
- 2
- Physical Characteristics
- Color Family
- Black
- Product Color
- Sapphire Black
- Form Factor
- Micro ATX
- Width
- 228.6 mm
- Depth
- 200.7 mm
- Miscellaneous
- Brand Compatibility
- AMD
- Environmentally Friendly
- Yes
- Energy Efficiency Compliance
- Energy-related Products Directive Ready (ErP Ready)
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- China Restriction of Hazardous Substances (China RoHS)
