• General Information
• • Manufacturer
  • ASRock, Inc
  • Manufacturer Website Address
  • http://www.asrock.com
  • Brand Name
  • ASRock

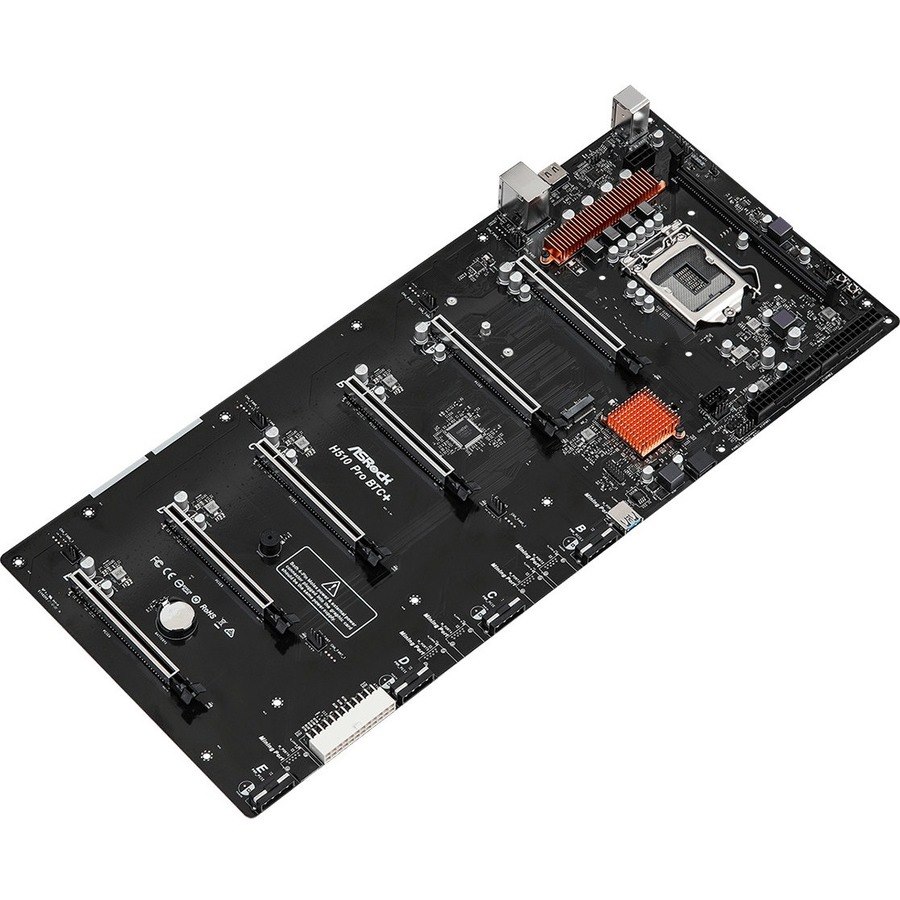

  • Product Type
  • Desktop Motherboard

• Supports 10th Gen Intel^® Core™ Processors and 11th Gen Intel^® Core™ Processors
• Supports DDR4 3200MHz
• Graphics Output: HDMI
• 6 PCIe 3.0 x16, 1 Mining Port (M_Port1 at x1)
• 1 SATA3, 1 M.2 (SATA3)
• 2 Rear USB 3.1 Gen1 Type-A
• 4 USB 2.0 Type-A (2 Rear, 2 Front)
• Intel^® Gigabit LAN
• 2 Extra 24-pin ATX Power Connector
• Onboard Power On / Reset Button
• Fully Independent Power Rail

Crypto Mining

This motherboard is specifically designed for mining, the revolutionary digital crypto-currency that may be used anywhere in the world. The abundant onboard PCIe slots guarantee fast Crypto mining, while the additional power connectors provide advanced system stability while mining.

M.2 For SSD

M.2 socket supports 2260/2280/22110 SATA3 mode M.2 SSD for up to 6Gb/s.

Smart PCIe State Detection

This motherboard has included a smart way to show the status of every graphics card. While the system is booting, the Power-On, Self-Test (POST) screen will show the status of the graphics cards that were installed on the motherboard.

USB Type PCIe x1 Mining Ports

Onboard USB Type PCIe x1 Mining Ports for Setting Up Even More Graphics Cards.

PCI-E STEEL SLOTS

The advanced PCI-E Steel Slots packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slots safely.

Riser Kit Free

Install graphics cards directly on the motherboard without using riser kits to ensure ultimate stability.

Intel^® LAN

Intel^® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

Sapphire Black PCB

Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Power On / Reset Button

Power On & Off system with onboard button is a must for open frame mining.

Digi Power

Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
