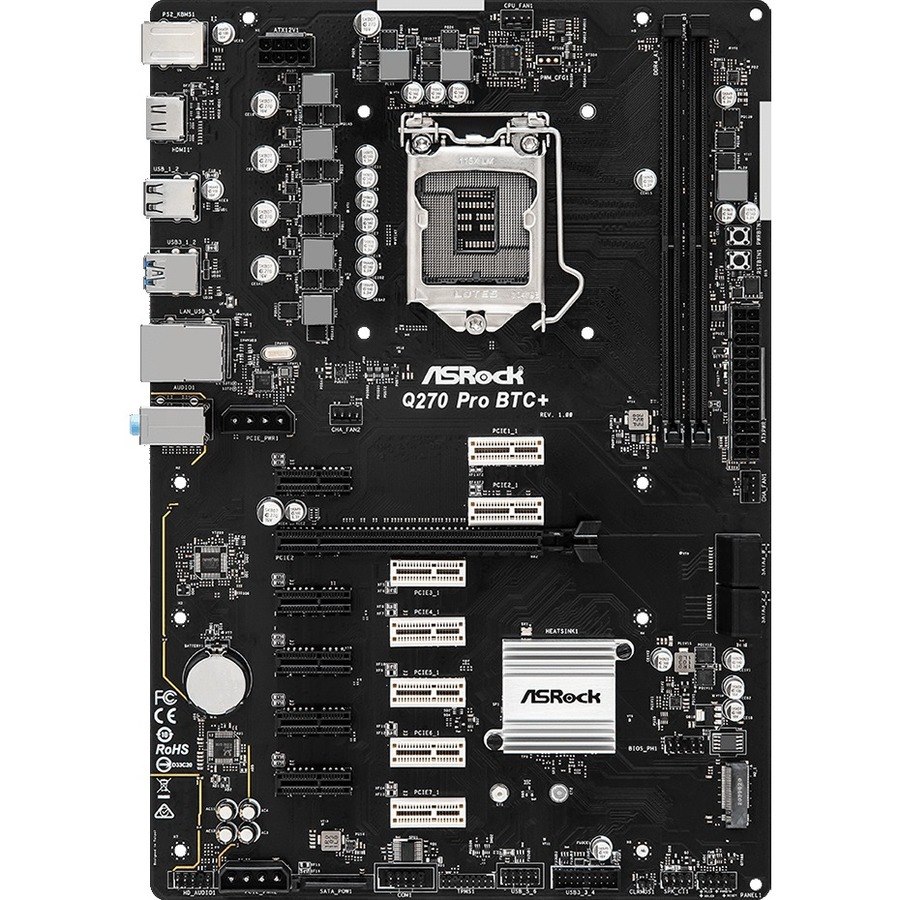

Crypto Mining
This motherboard is specifically designed for mining, the revolutionary digital crypto-currency that may be used anywhere in the world. The abundant onboard PCIe slots guarantee fast Crypto mining, while the additional power connectors provide advanced system stability while mining.
M.2 For SSD
M.2 socket supports 2260/2280/22110 SATA3 mode M.2 SSD for up to 6Gb/s.
Smart PCIe State Detection
This motherboard has included a smart way to show the status of every graphics card. While the system is booting, the Power-On, Self-Test (POST) screen will show the status of the graphics cards that were installed on the motherboard.
Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Power On / Reset Button
Power On & Off system with onboard button is a must for open frame mining.
Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.
- General Information
- Manufacturer
- ASRock, Inc
- Manufacturer Website Address
- http://www.asrock.com
- Brand Name
- ASRock
- Product Type
- Desktop Motherboard
- Processor & Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- Q270
- Total Processor Supported
- 1
- Processor Socket
- Socket H4 LGA-1151
- Processor Supported
- Core i5
- Core i3
- Pentium
- Celeron
- Core i7
- Memory
- Number of Memory Slots
- 2
- Memory Form Factor
- UDIMM
- DIMM
- Maximum Memory Supported
- 32 GB
- Memory Technology
- DDR4 SDRAM
- Memory Speed Supported
- 2400 MHz
- 2133 MHz
- I/O Controller
- Controller Type
- Serial ATA/600
- RAID Supported
- Yes
- RAID Levels
- 10
- 5
- 1
- 0
- Video
- Onboard Video
- CPU Dependent Video
- Audio
- Audio Channels
- 7.1
- Network & Communication
- Gigabit Ethernet
- Yes
- I/O Expansions
- Total Number of Expansion Slots
- 13.0
- Total Number of PCI Express Slots
- 13
- Number of PCI Express x1 Slots
- 12
- Number of PCI Express x16 Slots
- 1
- Interfaces/Ports
- Total Number of USB Ports
- 6
- Number of USB 2.0 Ports
- 4
- Number of USB 3.2 Gen 1 Ports
- 2
- HDMI
- Yes
- Number of Network (RJ-45) Ports
- 1
- Onboard Interfaces
- Number of SATA Interfaces
- 4
- Number of M.2 Interfaces
- 1
- Total Number of Onboard USB Ports
- 4
- Number of Onboard USB 2.0 Ports
- 2
- Number of Onboard USB 3.2 Ports
- 2
- Physical Characteristics
- Color Family
- Black
- Product Color
- Sapphire Black
- Form Factor
- ATX
- Width
- 304.8 mm
- Depth
- 208.3 mm
- Miscellaneous
- Brand Compatibility
- Intel
- Environmentally Friendly
- Yes
- Energy Efficiency Compliance
- Energy-related Products Directive Ready (ErP Ready)
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Restriction of Hazardous Substances (RoHS)
- China Restriction of Hazardous Substances (China RoHS)
