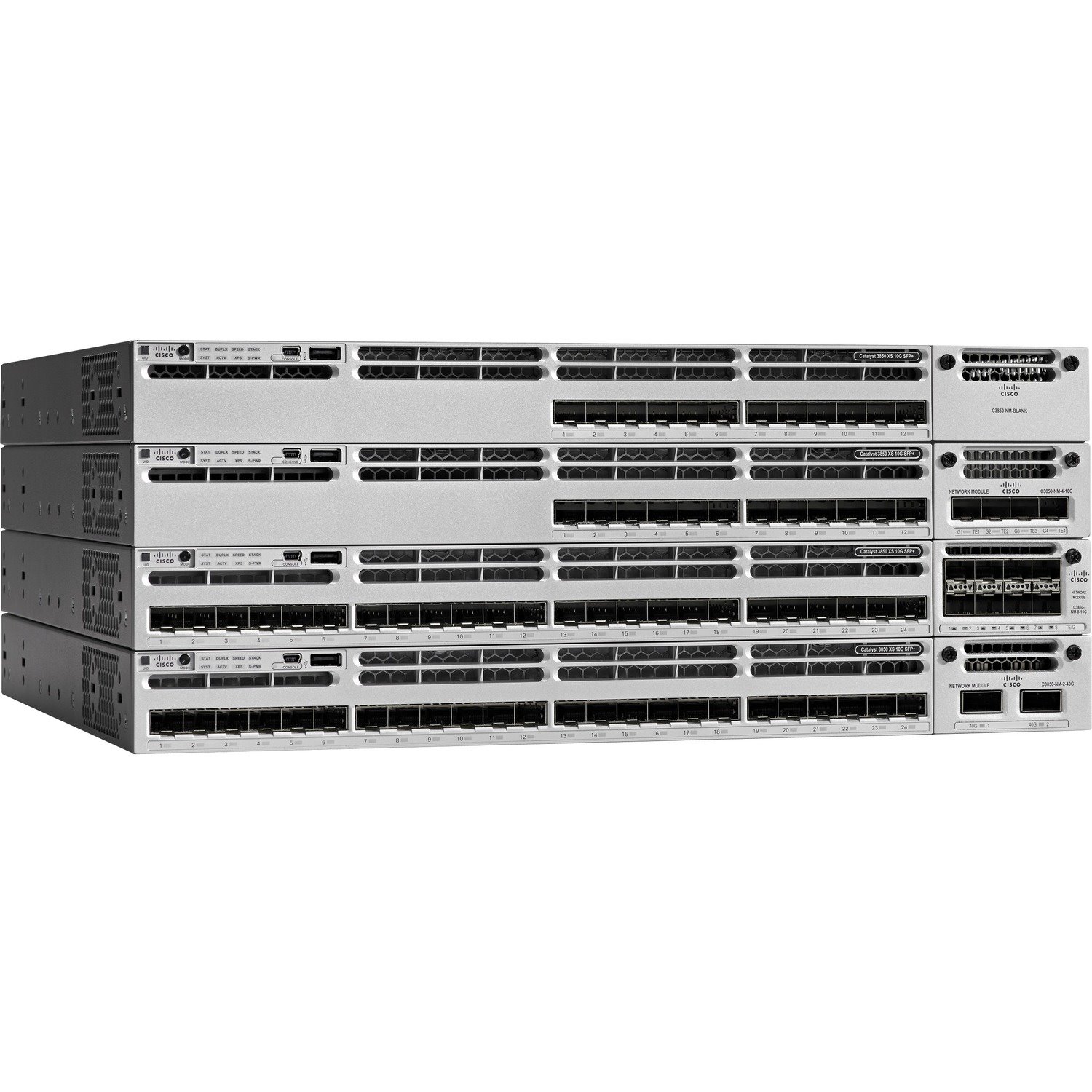

The Cisco® Catalyst® 3850 Series is the next generation of enterprise-class stackable Ethernet and Multigigabit Ethernet access and aggregation layer switches that provide full convergence between wired and wireless on a single platform. Cisco's new Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480 technology. The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE), modular and field-replaceable network modules, RJ45 and fiber-based downlink interfaces, and redundant fans and power supplies. With speeds that reach 10Gbps, the Cisco Catalyst 3850 Multigigabit Ethernet Switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure.
- General Information
- Manufacturer
- Cisco Systems, Inc
- Manufacturer Website Address
- http://www.cisco.com
- Brand Name
- Cisco
- Product Line
- Catalyst
- Product Series
- 3850
- Product Condition
- Refurbished
- Product Type
- Layer 3 Switch
- Interfaces/Ports
- Modular
- No
- Stack Port
- Yes
- Port/Expansion Slot Details
- 24 x 10 Gigabit Ethernet Expansion Slot
- Media & Performance
- Media Type Supported
- Optical Fiber
- Ethernet Technology
- 10 Gigabit Ethernet
- Network Technology
- 10GBase-X
- I/O Expansions
- Total Number of Expansion Slots
- 24.0
- Expansion Slot Type
- SFP+
- Number of SFP+ Slots
- 24
- Network & Communication
- Layer Supported
- 3
- Management & Protocols
- Manageable
- Yes
- Power Description
- Power Source
- Power Supply
- Redundant Power Supply Supported
- Yes
- Physical Characteristics
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Height
- 44.5 mm
- Width
- 449.6 mm
- Depth
- 444.5 mm
- Weight (Approximate)
- 6.12 kg
