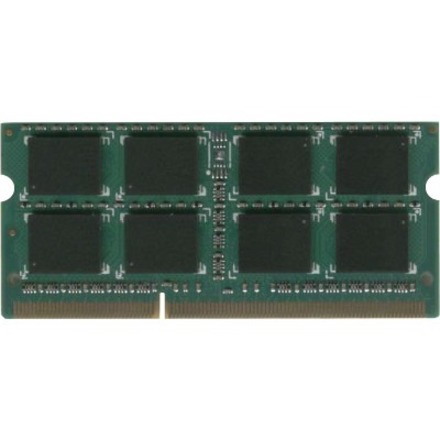

DVM16S2L8/4G is a non-ECC Unbuffered 512Mx64 small -outline memory module, which conforms to JEDEC's DDR3L-12800, PC3-1600 standard. The assembly is Dual-Rank. Each rank is comprised eight 256Mbx8 DDR3-1600 SDRAMs.
One EEPROM is used for Serial Presence Detect.
Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.
- General Information
- Manufacturer
- Dataram Corporation
- Manufacturer Website Address
- http://www.dataram.com/
- Brand Name
- Dataram
- Product Type
- RAM Module
- Technical Information
- Memory Size
- 4 GB
- Memory Technology
- DDR3 SDRAM
- Memory Voltage
- 1.35 V
- Memory Speed
- 1600 MHz
- Memory Standard
- DDR3-1600/PC3-12800
- Error Checking
- Non-ECC
- Signal Processing
- Unbuffered
- CAS Latency
- CL11
- Physical Characteristics
- Number of Pins
- 204-pin
- Form Factor
- SoDIMM
- Thickness
- 3.8 mm
- Width
- 30 mm
- Length
- 67.6 mm
