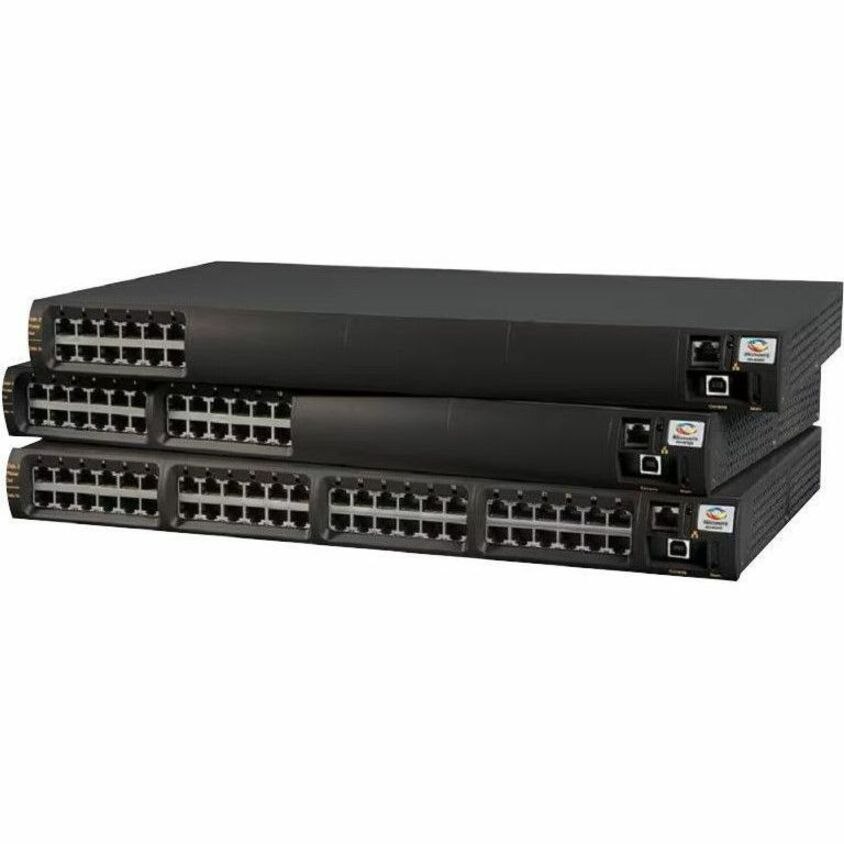

The PD-90xxG family is designed specifically to power IEEE 802.11n and IEEE 802.3at access points, Pan-Tilt-Zoom (PTZ) and dome cameras, IP videophones, thin clients and other high-power Ethernet end terminals. The family includes 6-, 12- and 24-port models, which are backward compatible and safe to use with any 802.3af terminal such as VoIP phones, IP cameras and wireless LAN access points.
These plug-and-play midspans are easy and cost-effective solutions for leveraging an existing Ethernet infrastructure while also assuring a future-proof network.
For secure remote management, all PD-90xxG models include PowerView Pro management software.
- General Information
- Manufacturer
- Microchip Technology Inc.
- Manufacturer Website Address
- http://www.microchip.com
- Brand Name
- Microchip
- Product Series
- PD-9000G
- Product Type
- PoE Injector
- Warranty
- Limited Warranty
- 3 Year
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Maximum Output Voltage
- 55 V DC
- Minimum Input Current
- 2.75 A
- Maximum Input Current
- 5.50 A
- Maximum Output Power
- 450 W
- Physical Characteristics
- Height
- 44 mm
- Width
- 272 mm
- Length
- 438 mm
- Weight (Approximate)
- 4.94 kg
- Miscellaneous
- Certifications & Standards
- IEEE 802.3at
- IEEE 802.11n
- 802.3af
- CE
- FCC Part 15, Class B
- EN55035
- VCCI
- UL/IEC/EN 62368-1
- Environmentally Friendly
- Yes
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
