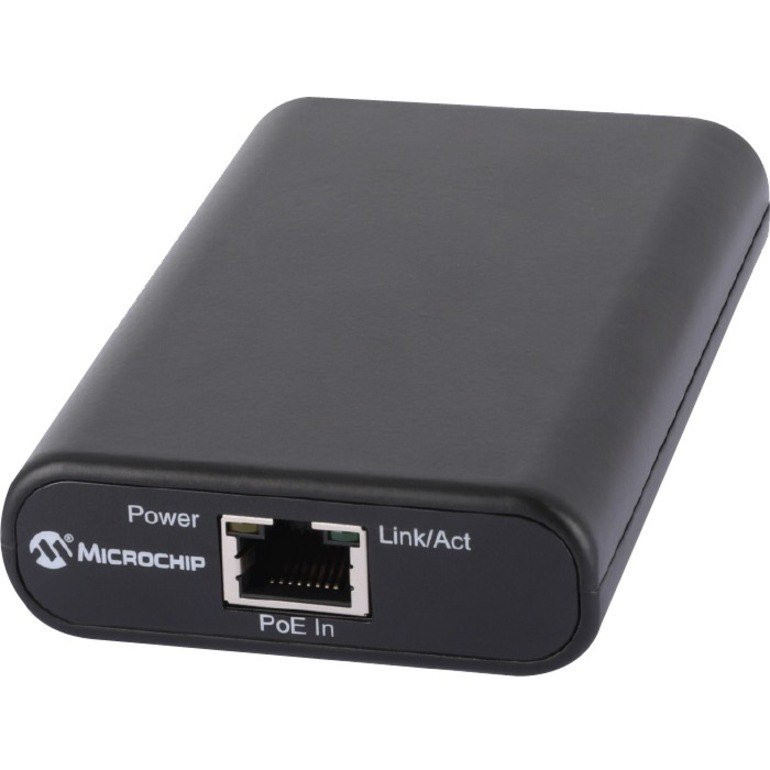

Microchip PD-USB-DP60 PoE Injector

  • Part: 1072010
  • Model: PD-USB-DP60
£94.00

Availability

In Stock

The Microchip PoE to USB-C® adapter connects IoT devices with a USB-C connector to Power over Ethernet (PoE) networks, enabling users to leverage the advantages of PoE and USB-C technologies. The PD-USB-DP60 is a PoE to USB-C adapter that provides both power and data to USB-C hosts and power to USB-C Powered Devices.

The PD-USB-DP60 adapter enables flexible installation of USB-C devices, removes the need for a close power outlet and resolves the issue of limited USB cable length. The PoE source can be up to 328 ft/100m from the location of the USB-C device. A single Ethernet cable is needed while delivering up to 60W of USB power at the output of the adapter.

The PD-USB-DP60 connects with small PCs/Next Unit of Computing (NUC), interactive information kiosks, smart monitors, tablets, laptops, cellphones, cameras and other USB-C powered devices consuming up to 60W. The adapter is compatible with USB2.0 and 3.1 and will automatically provide to the end device the exact amount of power it needs.

  • General Information
    • Manufacturer
    • Microchip Technology Inc.
    • Manufacturer Website Address
    • http://www.microchip.com
    • Brand Name
    • Microchip
    • Product Type
    • PoE Injector

  • Power Description
    • Minimum Output Voltage
    • 42 V DC
    • Maximum Output Voltage
    • 57 V DC
    • Maximum Output Power
    • 90 W
  • Interfaces/Ports
    • Input Ports
    • 1 x PoE
  • Physical Characteristics
    • Height
    • 22.4 mm
    • Width
    • 66.8 mm
    • Length
    • 105.2 mm
    • Weight (Approximate)
    • 150 g
