- General Information
- Manufacturer
- Opengear
- Manufacturer Website Address
- http://www.opengear.com
- Brand Name
- Opengear
- Product Series
- IM7200
- Product Type
- Infrastructure Management Equipment
- Warranty
- Limited Warranty
- 4 Year
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Input Voltage Range
- 100V AC to 240V AC
- Physical Characteristics
- Form Factor
- Rack Mount
- Height
- 44.5 mm
- Width
- 431.8 mm
- Depth
- 254 mm
- Weight (Approximate)
- 4.54 kg
- Miscellaneous
- Package Contents

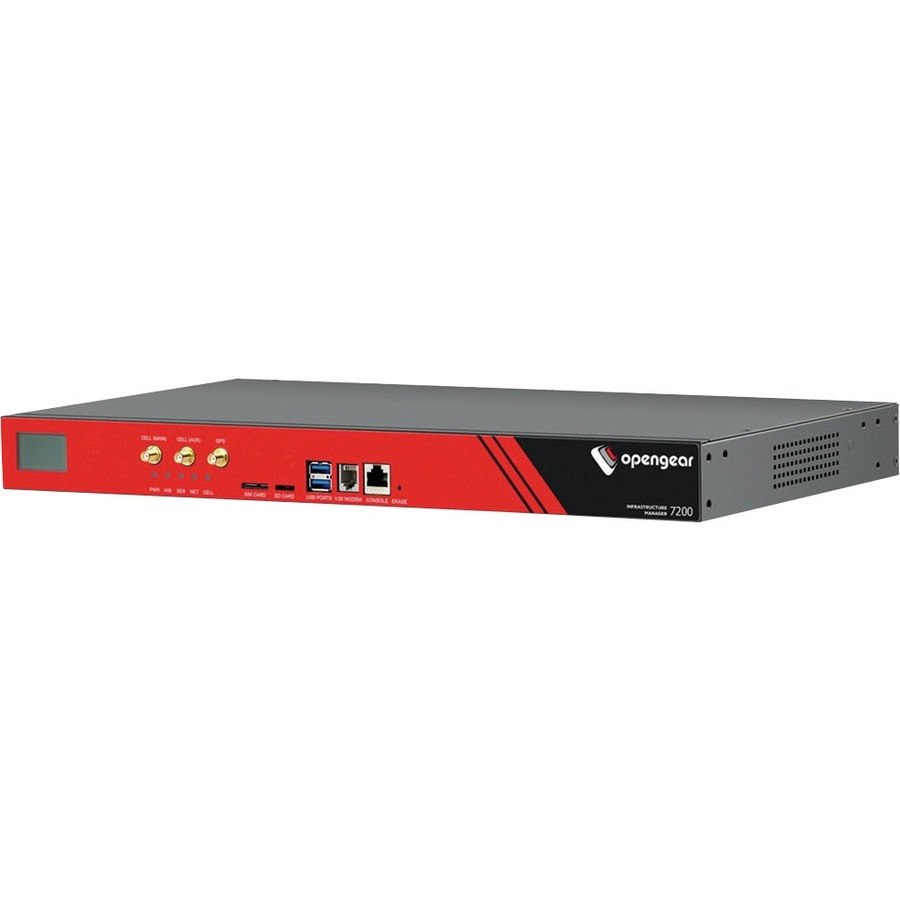

- IM7216-2-24U-DAC-UK Infrastructure Management Equipment
- Rack Mount Kit - Two Ears and Screws
- 1 x Cisco Straight DB9F-RJ45 Adapter
- 1 x CAT5 Patch Cable 5'
- Quick Start Guide
- 2 x AU A/C Power Cords
- Additional Information
Interface
- Ethernet Ports: 2 x 10/100/1000 Ethernet/SFP Fiber port with 1500V AC Isolation and ESD Protection
- Console Port: 1 x RJ45 RS-232 Console Port
- Serial Ports: Software Selectable 50 to 230,400 bps
- USB: 2 x USB 3.0 console ports
- Remote Access:
- Integrated 4G LTE Cellular Card, Integrated V.92 PSTN Dial-in, Dual Ethernet, aggregation & redundancy
- Automatic Network Failover, Easy browser UI IPv6
- Console Management:
- Built-in web terminal
- SSH direct to consoles
- Optional console keystroke logging
- Alert on cable disconnects, text pattern match and more
- Inline power control
- Multiple concurrent sessions
Memory & CPU
- CPU: 1 GHz ARM SoC (Marvell 88F6283)
- Memory:
- 256 MB DDR2 SDRAM
- 64 MB Embedded NOR Flash
- Internal Storage 16 GB Memory
Environmental
- Operating Temperature: 5°C to 50°C, 41°F to 122°F
- Storage Temperature: -30°C to +60°C, -22°F to +140°F
- Humidity: 5% to 90%
- Environmental Monitoring: Serial EMD5000 to support physical, smoke, water leak and vibration sensors
Security, Encryption & Authentication
- SSH
- FIPS-140-2 compliant Open SSL Module
- Strong ciphers -AES encryption
- Cisco-compatible IPsec
- OpenVPN
- AAA - TACACS+, RADIUS, Active Directory/OpenLDAP, Kerberos, with local fallback
- Two factor authentication via remote AAA
- Configurable stateful firewall
- Actively developed & support and security notifications-frequent firmware updates
Automation & Scalability
- ZTP, Lighthouse
- RESTful API, programmable and extensible
- Auto-Response, SNMP, LLDP, NTP
- Application/Usage
- Remote Management
- Environmental Monitoring
- Certification
Emissions
- FCC Part 15 Subpart B (Class A)
- ICES-003 Issue 5 (2014)
- AS/NZS CISPR 22: 200410 (Class A)
- EN 55032:2015 (Class A)
- EN 61000-3-2 Harmonics Current Emissions (2014)
- EN 61000-3-3 Voltage Fluctuation and Flicker (2013)
Immunity
- EN 55024 ITE Immunity (2010)
- IEC 61000-4-2 (2008)
- IEC 61000-4-3 (2006) A1 (2007) A2 (2010)
- IEC 61000-4-4 (2012)
- IEC 61000-4-5 (2014)
- IEC 61000-4-6 (2014)
- IEC 61000-4-8 (2010)
- IEC 61000-4-11 (2004)
Other Agency Approvals
- IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013, C-Tick
- FIPS 140-2 validated module Certificate #2473, CCC
