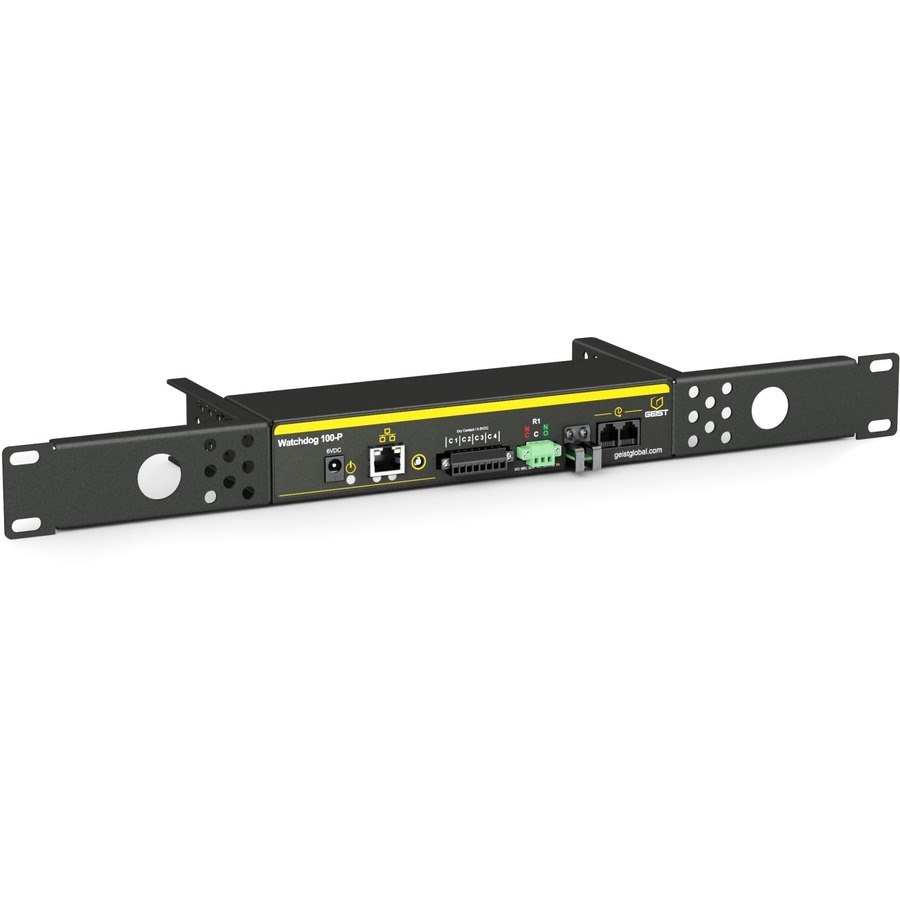

Environmental factors like heat, humidity and moisture pose a severe threat to mission-critical infrastructure. These dangers can be minimized by incorporating a network of environmental sensors to collect data and alert users of potential threats. Adding optional sensors to a Vertiv Geist Environmental Monitor or Rack Power Distribution Unit (rPDU) allows users to observe conditions from a secure Web interface and receive alerts via Email, SNMP, or Email-to-SMS.
- General Information
- Manufacturer
- Vertiv
- Manufacturer Website Address
- http://www.vertivco.com
- Brand Name
- Vertiv Geist
- Product Line
- Watchdog
- Product Type
- Environmental Monitoring System
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Product Material
- Steel
- Form Factor
- Rack-mountable
- Height
- 64 mm
- Width
- 216 mm
- Depth
- 41 mm
- Miscellaneous
- Additional Information
- Activity LED: 1
- Idle LED: 1
- Power Over Eithernet (PoE): Yes
- Power Supply Compatible with these Systems Input: AC 100-240V, 50/60Hz Output: DC 6V, 2A: North America (NEMA 5-15P)
- Internal Temperature Sensor: -4°F to 185°F /-20°C to 85°C
- Internal Temperature Measurement Accuracy: +/-0.5°F / ±0.3°C
- Internal Humidity Sensor: 0% to 100% (20% to 80%)
- Internal Humidity Sensor Measurement Accuracy: +/-3% (+/-2 )
- Dew Point Measurement Range: -37°C to 75°C, +/-2.5°C OR -35°F to 167°F, +/-4.5°F (-20°C to 80°C and 20-80%RH)
- Network Connection: Ethernet via RJ45
- Network Protocols Supported and Data Access Formats: HTTP, HTTPS (SSL/TLS), SMTP, DHCP, ICMP, TCP/IP, HTML (Desktop), SNMP v1/v2c, XML, CSV, JSON
- Reboot Button: Yes
- Remote Sensor RJ Connection Jacks: 2 (Supports up to 4 Sensors)
- Analog Ports: 4 Dry Contact / 0-5VDC
- Output Relays: 1
- Configuration: Zero U or 1U
- Adjustable Mount Brackets: Yes
Certification/ Agency Approvals:
- FCC Part 15 Class A Conformance
- EN 55032
- EN 55024
- CE Marked
- Application/Usage
- Data Center
- Server Room
- Country of Origin
- United States
- Environmentally Friendly
- Yes
