- General Information
- Manufacturer
- ZYXEL Communications Corp.
- Manufacturer Website Address
- http://www.zyxel.co.uk
- Brand Name
- ZYXEL
- Product Series
- XGS2210
- Product Type
- Layer 3 Switch

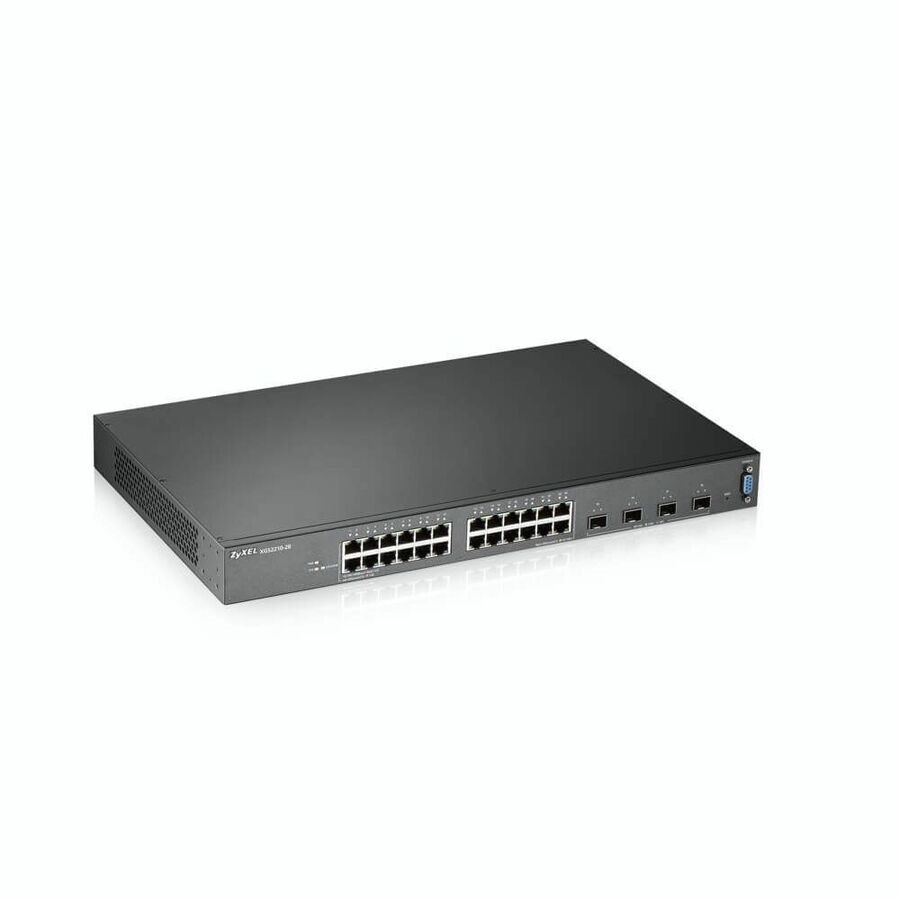

The XGS2220 Series is a family of Layer 3 access Switches that consists of six models, including PoE, Non PoE and Fiber options. Non PoE models offer Gigabit desktop ports for everyday network access; PoE models allow flexible options with larger PoE budgets and a mix of 60 W and 30 W ports to power devices like the latest WiFi 6/6E Wireless Access Points; The Fiber model aims to achieve business connectivity for high fiber port density requirement.
- Warranty
- Limited Warranty
- Lifetime
- Interfaces/Ports
- Total Number of Network Ports
- 30
- Uplink Port
- Yes
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 24 x Gigabit SFP Expansion Port
- 4 x 1G SFP/10G SFP+ Expansion Port
- 2 x 1G/2.5G/5G/10G RJ-45 Network Port
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- Gigabit Ethernet
- 2.5 Gigabit Ethernet
- 5 Gigabit Ethernet
- 10 Gigabit Ethernet
- Network Technology
- 1000Base-X
- 2.5GBase-X
- Maximum Data Transfer Rate
- 1.25 GB/s
- I/O Expansions
- Expansion Slot Type
- SFP
- SFP+
- Number of SFP Slots
- 28
- Number of SFP+ Slots
- 4
- Network & Communication
- Networking Standards
- IEEE 802.3z
- IEEE 802.3ab
- IEEE 802.3an
- IEEE 802.3ae
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bt
- IEEE 802.3az
- IEEE 802.3x
- IEEE 802.1ab
- IEEE 802.1Q
- IEEE 802.1p
- IEEE 802.1x
- Management & Protocols
- Manageable
- Yes
- Power Description
- PoE (RJ-45) Port
- Yes
- Input Voltage
- 120 V AC
- 230 V AC
- Frequency
- 50 Hz
- 60 Hz
- Power Consumption
- 66 W
- Physical Characteristics
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Desktop
- Height
- 43.9 mm
- Width
- 440.9 mm
- Depth
- 263.1 mm
- Weight (Approximate)
- 3.50 kg
- Miscellaneous
- Package Contents
- 24-port SFP L3 Access Switch with 6 10G Uplink
- Power cord
- Rack mounting kit
- Application/Usage
- Network
- Business
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
